How to Replace Your Inground Pool Light With LED Bulbs

Upgrading to a pentair led pool light cuts energy use by up to 80 percent compared to halogen bulbs while delivering brighter, longer-lasting illumination. Most homeowners complete the swap in under an hour using basic tools, and the process works for Pentair IntelliBrite, ColorLogic, and other standard inground pool lights. We walk you through each step, from powering down safely to sealing the fixture so water stays out.

Why Upgrade to LED Pool Lights

Traditional incandescent and halogen pool bulbs draw 300 to 500 watts and burn out every one to three years. LED pool lights use 30 to 50 watts, last 20,000 to 50,000 hours, and resist the thermal shock that cracks glass housings. Color-changing models like the Pentair IntelliBrite 5G let you cycle through multiple hues without rewiring, and the cooler operating temperature means less stress on gaskets and lenses.

We also see lower maintenance costs. A single led pool bulb often outlasts five halogen replacements, and the lower heat output reduces chemical evaporation near the light niche. If you want to see current pricing on Pentair and compatible models, check our discount code for 10% off all orders.

Safety First: Turn Off Power at the Breaker

Never work on inground pool lights with the circuit energized. Flip the dedicated breaker in your main panel, then test the switch to confirm the light stays dark. Most pool lights run on 12-volt transformers, but the line voltage feeding that transformer is 120 or 240 volts and can be fatal in wet conditions.

Lock out the breaker with a tag or padlock if others share your home. Wait at least five minutes after shutting off power so any capacitors in the transformer discharge fully. Keep a voltage tester handy to double-check the fixture before you touch bare wires.

Remove the Old Pentair LED Pool Light Bulb

Locate the single pilot screw at the top of the light fixture (usually visible when you look into the niche from poolside). Turn that screw counterclockwise until the light assembly loosens, then pull the entire housing out of the niche. Most Pentair fixtures have eight to twelve feet of cord coiled behind the niche, so you can lift the light onto the pool deck without disconnecting wires.

Lay the fixture face-down on a towel. Remove the screws around the lens ring, lift off the lens, and pull out the old bulb. If you own an IntelliBrite or similar sealed unit, the bulb and LED board are one assembly; for standard sockets, the bulb simply twists or pulls free. Inspect the gasket between the lens and housing—replace it if you see cracks, compression set, or any hardening.

Choose the Right Pentair LED Pool Light Replacement

Match voltage, base type, and wattage to your existing fixture. Pentair IntelliBrite 5G models use a proprietary LED board and require a genuine Pentair replacement or a tested aftermarket module that specifies IntelliBrite compatibility. For standard Edison or bayonet-base niches, any pool light bulb rated for submersible use and the correct voltage will work.

Color-changing bulbs need a compatible controller. If your pool already has a Pentair IntelliTouch or EasyTouch system, an IntelliBrite replacement will plug into those color-mode settings without extra wiring. Standalone color bulbs include a remote or cycle colors automatically each time you power on. The IntelliBrite 5G Underwater LED Pool Light Brochure lists official specifications for wattage and lumen output.

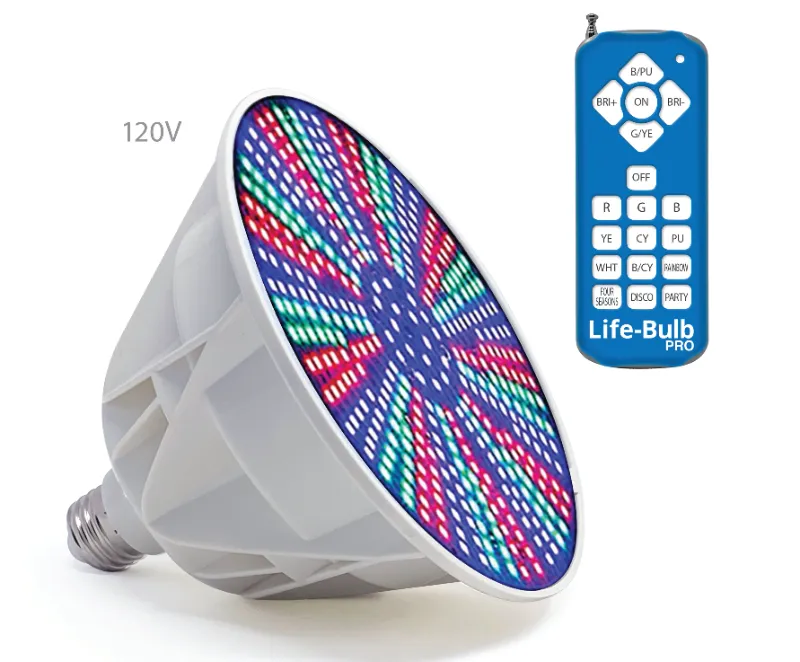

Install the New LED Pool Light Bulb

Insert the new bulb into the socket or secure the LED board with the original mounting screws. Place a fresh O-ring in the groove if the old gasket shows wear, then apply a thin bead of silicone pool-light sealant around the lens perimeter. Press the lens firmly against the housing and tighten the retaining screws in a star pattern so pressure distributes evenly.

Coil the excess cord neatly inside the niche—avoid kinks or sharp bends that can damage the insulation over time. Slide the fixture back into the niche and thread the pilot screw clockwise until snug (do not overtighten, or you may strip the plastic threads). Restore power at the breaker and test the light. If you see condensation inside the lens within 24 hours, the gasket seal has failed and you will need to remove the fixture, dry the interior, and reseal.

For detailed troubleshooting of Pentair IntelliBrite lights that will not power on or cycle colors, the Pentair LED Pool Light Troubleshooting guide covers reset procedures and common wiring faults.

Pentair IntelliBrite Lights: Color-Changing Settings

Pentair pool lights offer five fixed colors (blue, green, magenta, white, red) plus four automated light shows. Access these modes through your automation panel or by cycling power: turn the light off, wait 10 seconds, then flip it back on. The system advances to the next color or show with each cycle. Some homeowners find this cumbersome, so we recommend pairing IntelliBrite fixtures with an IntelliTouch or ScreenLogic controller for one-touch color selection.

If your current setup lacks automation, you can still enjoy color variety by installing a simple on-off timer and programming it to cycle every few minutes during evening swims. For side-by-side comparisons of Pentair and competing brands, the ColorLogic 4.0 vs Pentair IntelliBrite discussion highlights real-world brightness and hue differences.

When to Call a Professional

Most do-it-yourselfers handle LED pool light replacement without trouble, but hire a licensed electrician if you discover corroded wiring, a cracked niche, or water inside the junction box. Similarly, if your pool was built before 1975, the niche may lack a bonding wire or use outdated conduit that does not meet current code. Upgrading wiring now prevents shock hazards and keeps your insurance valid.

For the widest selection of pentair pool light models and compatible LED bulbs, grab our code and compare specifications before you buy. Correct installation and a quality bulb will give you years of vibrant, energy-efficient lighting.
